Stone Foundations and Tent Platforms in NW Coast Archaeology

Tlingit house with stone wall foundation near Juneau, Alaska.  Source: SHI Archives, Richard Wood collection. http://goo.gl/hH9Pfl

Tlingit house with stone wall foundation. “Photograph of a Taku village homes, photo likely by Partridge, circa 1887. Village site was located on the mainland across from Douglas Island, south of present-day Juneau”: SHI Archives, Richard Wood collection. http://goo.gl/hH9Pfl

We’re a little obsessed with wooden architecture in the NW Coast archaeology world – with good reason, I guess, since monumental wooden houses are such a prominent feature of the recent past. I suppose we sometimes stereotype these houses a little – a point some commenters made in the Houses on Stilts post here a while back – we think: “large rectangular house squatting in midden supported by giant house posts.” Not always the case, certainly not through time.

In general, we may underestimate large scale constructions in stone.  Burial cairns and mounds (one of Darcy’s consists of 18 dump-trucks worth of soil), rock wall defensive sites, trench embankments, canoe runs, fish traps, and of course, clam gardens, all involved massive deployments of stone, with associated labour investments and creation of a durable built environment. Anyway, we’ve recently been running into enigmatic rock structures on the central coast and Quadra Island, and in particular, the possibility of dwelling structures partially based on stone walls.  So it’s quite cool to run across the picture above from the SHI photo collections, showing a Taku Tlingit house from the historic period, sitting on a platform which has a stone wall as a foundation.

Detail of Taku Tlingit stone foundations. You don't see many cats in historic pictures on the NW Coast.

Detail of Taku Tlingit stone foundations. You don’t see that many cats in historic pictures on the NW Coast.

It’s obviously a historic era structure – sawn logs, log-cabin style, fairly new at time of photography around 1887. The house to the right shows a more traditional style structure, while the one in the upper left is more of a western clapboard house. But all the same, the rough, yet sturdy, drystone wall is supporting a fairly large terrace cut into a steep slope and is quite educational from the perspective of expanding our range of mental models of what could be associated with NW Coast houses. I’m also looking at the upside down stump embedded in the bank to the left.  Is that part of the terracing?

Village of the Friendly Indians near Bute's Canal.  Watercolour by William Alexander.  Source: University of Illinois.

Village of the Friendly Indians near Bute’s Canal. Watercolour by William Alexander. Source: University of Illinois.

Multi-row houses on steep slopes are fairly well known on the NW Coast: see the picture above of one from Homalco Territory from the previously mentioned Houses on Stilts post. But even gentle slopes would have asked for levelling, perhaps.  And what would be the reaction of hitting a pile of rock slabs in the bottom of a one metre square unit?  Probably it’d be interpreted as the bottom of the interesting stuff and an indicator of sterile.  Hard to shovel into, for sure! But the typical scale of NW Coast archaeology (big, big, complex sites and relatively small, small holes) often makes it hard to imagine really getting a handle on architectural details.

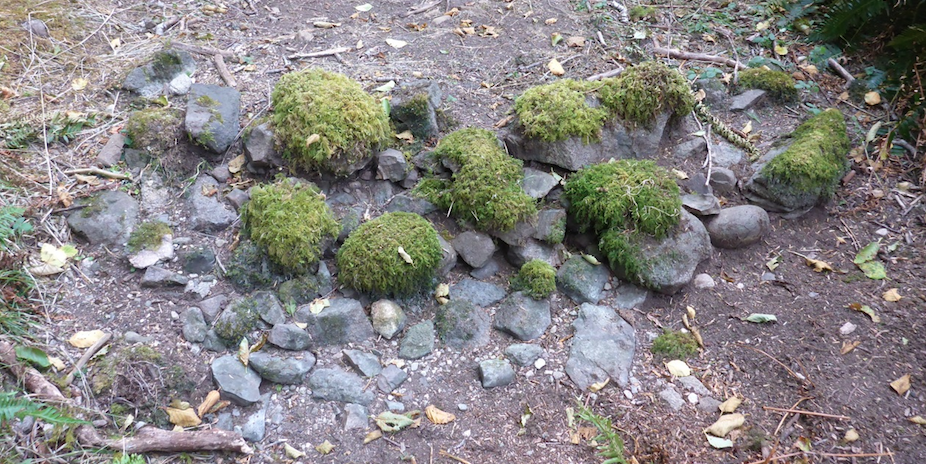

Rock wall on Quadra Island.  Anchors a small terrace rich in cultural material.

Rock wall on Quadra Island. Anchors a small terrace rich in cultural material. Source: qmackie.

For an archaeological example, above is a picture of a rock wall which happened to be exposed in a tiny rivulet.  The wall itself is partially constructed of large stone tools, which is cool in its own right. It continues out of frame to right and left, but is not exposed in the same way. Behind the wall, a small test unit showed the stone structure three courses deep, with a definite edge, and abundant charcoal and lithics organized into thin strata like living surfaces.  Preliminary dating shows use around 1500 years ago. Anyway, it’s an example of what we think may be a habitation structure of some kind built on a stone foundation, perhaps even with low stone walls as a perimeter.  You can see numerous additional examples of similar walls in the pictures below, also from the SHI archive.

Albumen print photograph showing a view of T’aaku Kkwáan Tlingit homes in the Gastineau Channel, labeled “Indian huts near Juneau,” photograph by William Partridge, 1886. # 7319. Image shows T’aaku Khwáan village with houses, canoes, tents, and people on the beach.

Note the numerous small rock platforms built on the sidehill. Albumen print photograph showing a view of T’aaku Kkwáan Tlingit homes in the Gastineau Channel, labeled “Indian huts near Juneau,” photograph by William Partridge, 1886. # 7319. Image shows T’aaku Khwáan village with houses, canoes, tents, and people on the beach.Source: SHI Archive http://goo.gl/WQGJC0

It’s also not just about houses. Above and below you can see rock platforms built to support tents; in the lower case these are in the uppermost intertidal or immediate supra-tidal zone.  The bottom picture shows a similar uppermost tidal rock platform which contained abundant charcoal dated to, if memory serves, to about 4,000 years ago.  This is from Duncan McLaren’s Hakai Ancient Landscapes project which I get to volunteer on from time to time.

Oversized cabinet card labeled “Camp of Auk Indians, Alaska,” by Winter & Pond, 1896. Image purportedly shows an Auk’w Kwáan fishing camp with tents, gear, and Tlingit people. SHI Archive, http://goo.gl/Q30Rv9

Tent at right is sitting on a semi-circular raised platform formed of rocks. Detail from Oversized cabinet card labeled “Camp of Auk Indians, Alaska,” by Winter & Pond, 1896. Image purportedly shows an Auk’w Kwáan fishing camp with tents, gear, and Tlingit people. SHI Archive, http://goo.gl/Q30Rv9

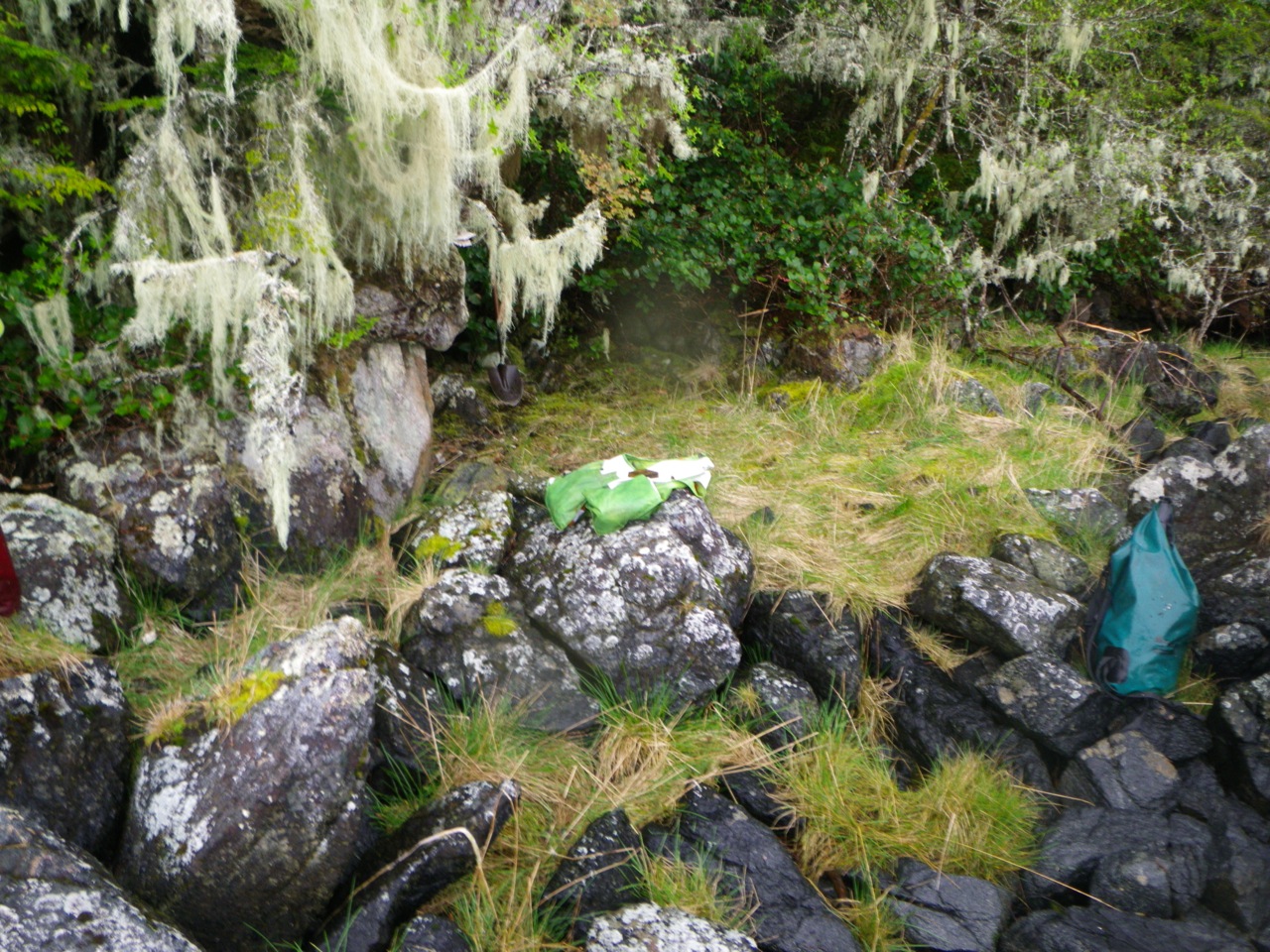

Stone platform near Haka Pass containing abundant, ancient, charcoal. Source: qmackie

Stone platform near Hakai Pass containing abundant, ancient, charcoal. Source: qmackie

So, stone: an under-appreciated construction material on the NW Coast?  If you have examples of unorthodox stone constructions then leave a comment, or send me an email.

26 responses to “Stone Foundations and Tent Platforms in NW Coast Archaeology

  1. There are very few mentions in ethnographies of constructing dwellings from rock, or on rock foundations, that I can recall. This quote sticks in my mind (because it is the only one?). It is from G.M. Sproat’s 1868 ethnography of the Nuu-chah-nulth, “Scenes and Studies of Savage Life” (page 16).

    “I knew an old native hunter – Quicheenam of the Opechisahts – who, with his whole family, was accustomed to go every summer for two months about thirty miles from his village, for the purpose of shooting elk and deer on a large rocky mountain. There being no wood on the mountain, except a scrubby fringe at its foot, a hut was made of stones, and wood was carried up for fire.”

    Like

  2. Missonary influence? Luke 6:48 “He is like a man which built an house, and digged deep, and laid the foundation on a rock: and when the flood arose, …”

    Like

  3. OK, this isn’t stone, but it does involve some interesting log crib work and earth moving in order to build a house on a steep slope. This is from Boas 1916:47 Mythology of the Tsimshian:

    “Sometimes the houses are built on steep banks, so that only the rear half is built on the ground. In this case a foundation of heavy cedar trees is built. A short log is placed with one end in the bank, the butt end standing out toward the beach, where the side wall is to be. Another log is placed in the same manner where the second side wall is to be. A third heavy log is placed over the butts of the two projecting logs. Then two more logs are put on top of the first pair with their ends in the bank, and thus a foundation is built up to the level of the embankment. This is covered with a platform, and the house is built about eight or ten feet back from its outer edge, so that the platform forms the front portion of the floor of the house as well as a summer seat in front of the house door.”

    Although Boas doesn’t mention it, the rear half of such a house would have to have had a sizeable excavated/leveled floor in order to be “built on the ground” for the back half.

    Like

  4. Morley’s reference reminds me of working on Digby Island of Prince Rupert with George MacDonald (the summer of Woodstock and 1st walking on Moon….). I did the maps of the terracing and the shell midden strata appeared to show that the middens were built behind the houses so new terraces could be formed for houses to be built on in the future.

    In terms of Quentin’s interest in stone alignments and features, working at Ozette there were numerous areas were stones were moved on either side to form canoe runs–probably poles were placed parallel to the beach to create skids (we actually found these poles staked into the old beach at the 2600-3000 year old Hoko wet site). A good photo of one (Quentin cannot wait!) is in this useful web pdf source–all will find interesting overall–on page 18–a photo from 1961 by Louis Kirk, Ruth’s husband at the time: http://www.coastalwatershedinstitute.org/media/Nearshore$20Studynomaps.pdf. Those features should show up underwater if mapping like Quentin and Daryl did with subs this summer!

    The log house shown by Quentin at Taku has an interesting roof–possibly partially bark boards held down by those poles (some wood planks obvious too). Also love the domestic cat sitting with the family! Thanks, Dale

    Like

    • Hi Dale, there was a great photo of horizontal canoe run poles staked into the intertidal zone in Victoria’s Inner Harbour as part of an outdoor photo exhibit of the historic era Songhees Reserve (there as of a few weeks ago). It was really neat to see blown-up versions of some of the historic photos (several meters across), and notice all the little details. When I saw these I was wondering how often these stakes might actually be found and possibly mistaken for the remnants of fish weirs; interesting that you identified these at Ozette!

      I checked Keddie’s Songhees Pictorial (2003) and there are a few relevant photos worth following along if you can get hold of the book… I got sucked into an interesting comparison of two photos.

      I’m not sure if its the same picture as the one in the Harbour, but there is an 1864 photo on pg. 88 where you can clearly see the staked-in horizontal skids running up a shallow gravel beach. I might be imagining it but there are some dark intermittent lines running parallel to the poles– old stakes maybe? The skids are the only set on the beach and extend up to just adjacent of a notched pole which looks like pedestrian access to the top of the 5-10 m high bank. Interestingly, there is a row of thick horizontal poles in a sort of gully that extends up to the top of the bank, which might represent a haul-in/out? It would take a lot of people, but Lo and Behold there are two very large canoes on the upper bank in front of the plank houses…

      Page 80 shows a ~1963/1964 photo (“Indian Ranches, West side of Harbour”) of the same location. The poles are absent on the beach and in the haul-out gully. There is a canoe pulled up between parallel dark splotches on the beach which I assume are stakes.

      Those stone walls are the definition of ‘waterfront’…

      Like

      • Hi Roger. It is really cool to see the detail captured in some of those historic photos – 8 by 10 inch negatives even! Which is why it’s disappointing in this day and age when online repositories like the BC archives offer such grainy, low-res images. They must have higher-res ones from the scanning process and it’s not like bandwidth is a concern anymore.
        I’ve seen a “canoe run” with the wooden elements still in place on Gardner Canal, but I suspect it may relate to historic logging. However, it is exactly as described, wooden poles laid like widely spaced railway ties across the clearing through the beach. I’ll see if I still have a photo somewhere.

        Like

  5. Interesting pointers, Ehpem and Morley.

    Dale, speaking of the cat, in that super-interesting document you link, I can’t help noticing the story of using a cat as a test bed for the presence of paralytic shellfish poisoning.

    “Some people used to test the clam by touching it on their lip, and if it burns, it’s not good. One woman in Canada did this and died just from touching her lip. Elaine’s uncle, Lyle Prince, would take the clam neck and give the tip of it to a cat, and if the cat started going around in circles and falling and acting drunk then you better not eat it. Vince recalls a man in Neah Bay who didn’t believe Vince’s red tide warning, so he went and got some clams and cooked them up, but to be certain he gave them to his cat first. The next day he came into Vince’s office and his eyes were as round as half dollars and he said “my cat died last night!””

    Like

  6. Super interesting post qmackie (as always) and comments too. Thank you SO much for the link to the document, Dale. Great reading!

    Like

  7. Vince Cooke, a co-author, helped us from age 11 at Hoko and eventually was supervisor on the wet site at 16–one of our youngest Makah crew members. Currently he is in my Reservation-base class I teach part time at The Evergreen State College and he told me about this article on-line a few days ago–so just got it and have not really read through it–wild about the cats!!!! I bet in ancient times they may have tried it on village dogs, but would spare the valuable wool dogs!

    Did Iain go surfing in the storms this weekend?! Best, Dale

    Like

  8. Figure 5, Springer 2013, house floor feature at Mahlohhohm site, Tla'amin territory.

    I got an interesting email from Chris Springer regarding this post, and the very cool picture he agreed to let me post, above. It’s from the Spring 2013 CAA Newsletter, 31(1):5-9, concerning an excavation on Ahgykson (Harwood Island), which is near Powell River, north of Texada Island, at a site called Mahlohhohm (“water bubbling up out of the ground”). It seems like there is a housepit site(!) dating to around 2600 calendar years ago (!!). This picture shows a clear horizontal boundary with black matrix to the right, clearly delineated by a very straight line which surely represents a rotted-away wooden plank? Anyway, germane to the blog post at hand, a series of granite slabs were lain down on sterile, and can be seen in the picture (the square corner in the black matrix is a trowelling mark). The stones were used in combination with sandy silt to create flooring within the house or within part of the house. The picture below shows the stones on top of the sterile silty layer.

    These houses are, by the way, very large — 13 to 19 metres across and don’t conform to a general impression of Locarno-era houses as being quite small. It does emphasize the size of feature vs size of unit issue we so often struggle with on the NW Coast. A 15 metre diameter housepit has an area of about 175 square metres.

    It’s a super-exciting find and many thanks to Chris for sharing his photos with us.

    Like

  9. Nicole: Just read the piece–yes real interesting! Melissa Peterson worked with us at Ozette too. Good to have Vince in the class. The TESC course is Ancient and Modern Northwest Native Basketry: Combining Cultural and S.T.E.A.M. (Science, Technology, Engineering, Art and Math), a 2 credit upper division class with students from Quinuault, Quileute, Makah, Jamestown S’Klallam, Puyallup, Nisqually and Muckleshoot. It emphasizes how to use basketry to help youth apply STEAM to find practical uses for these overall areas of study. The Native students provide the Cultural side and I show how we used STEAM to study ancient basketry–works pretty good.

    We team taught a similar Museum Studies class for the NW Indian College with the Squaxin Museum staff (6 persons), as well as Kathleen Hawes to show the use of cellular ID for basketry materials, last spring as a way to develop exhibits. The student exhibits from this class were featured in the recent Northwest Native American Basketweavers Association (NNABA) program sponsored at Squaxin Oct 4, and this was the 1st day of the TESC class, so they went on a fieldtrip to NNABA: http://www.theolympian.com/2014/10/02/3350821_tribal-museum-students-install.html?rh=1. So retirement can be interesting, but not as fun as sabbatical!? I bet Quentn can attest to that! Best, Dale

    Like

    • Cool! Thanks for sharing Dale. I just learned about STEAM on Friday in a conversation about combining traditional knowledge and STEAM around clam gardens. Will have to chat to you more about this. Would love to hear about your experiences. And, yes, I believe there was surfing had this weekend.

      Q and Chris, thanks for the post about the Harwood houses. Beautiful!

      Like

  10. Chris Springer’s work at this Locarno Beach site is very interesting. Hoko River dry site had dwellings and lithic artifacts of Locarno Beach style from 2600-3000 BP–and some interesting stone features in these dwellings, including slab lined pits. They were small surface dwellings at this halibut fishing camp and from post-hole features and common sewn tule mats and stick skewered bark board pieces found in the associated wet portion of the site, the dwelling appear to be campsite pole structures with sewn tule mat walls and bark board roofing. Take a look at the dry site (the campsite) strata section and also slab-lined pits in the Lithic section of the image archive for Hoko (also sewn tule mats and cedar bark boards in the wet site artifacts): http://www.library.spscc.ctc.edu/electronicreserve/anth280/hoko/ . Also the 100:1 model built with representation of these shelters and slab lined pits under Camplife section, Type: Model and Village Reconstruction.

    Interesting to compare to the amazing features found by Chris. Is his article on pdf, or others on this work? I better check my CAA registration! Thanks so much, Dale

    Like

  11. Thank you for helping me create a story from North Coast prehistory. Midden-Notes is a work of study prompted by Dr. Ken Ames, PSU

    Like

  12. Here’s a short news report on the early stages of the SFU work by Dana Lepofsky, Chris Springer and others on Ahgykson (Harwood Island):
    http://archaeologynewsnetwork.blogspot.com/2011/07/scientists-peel-back-time-on-harwood.html

    Like

  13. Hi Quentin, more awesome stuff, thank you. With regard to near shore stone structures I look to Doug Deuer’s chapter in “Keeping it Living” (2005), entitled ‘Northwest Coast Estuarine Gardens as Engineered Environments’. Lot’s of good detail there about modifying the near shore environ and piling up stones etc. Not sure if any of these features have been recorded archaeologically (other than the Nimpkish River Gardens) as gardens, possibly some as fish traps or clam gardens?

    A quote from Duer, page 311 (based upon Boas, etc.):
    “…garden beds were constructed by the removal of rocks and boulders down to a level rock-and-soil surface. These rocks were placed in “large piles or in walls which surround a bed,” and appear to have served in part to retain mounded and churned marsh soils (Boas n.d. 1966). Such rock work gardens appear to have been quite widespread in high-relief shorelines or in places with comparatively small natural salt marshes…”

    Again sea level history is critical to understanding the possible function of such near shore features which may have served multiple functions as shore morphology changed through time.
    Jim

    Like

  14. Kisha Supernant

    Some of the rock features in the lower Fraser Canyon (between Yale and Spuzzum) look a lot like the house platform in the photo. In my dissertation (and now I wish I had that photo to use for comparison!), I talk about how some of the rock features are likely bases for plank houses, due in part to the fact that the majority of them are terraces and are placed in areas without a lot of flat ground. I have a chapter submitted to a forthcoming volume on the Fraser Valley that goes into more detail about the structure and layout of a sample of rock features in the Canyon, and they are discussed in Schaepe’s 2006 American Antiquity article.

    I’ve also been using an RTK GNSS to map canoe runs in Prince Rupert Harbour. A lot of the large villages have significant modifications to the intertidal involving moving and stacking stone. I suspect that shell was used in the middens to create platforms, but in the absence of shell (or in parts of the environment, such as the intertidal, where shell would have been unstable), rocks were used in similar ways.

    Glad to see more examples of building with stone on the Coast!

    Like

  15. Jim — thanks for the reference. I wonder if in places of rising sea level, stone constructions became colonized disproportionately by edible rhizomes and this turned the light bulb on? In any case, for every place that gets cleared of rocks, another place must get them piled up, perhaps leading to unintended consequences of the good variety.

    Kisha – hi, and thanks for your note. I look forward to your chapter. I thin Darcy discusses how some burial cairns may be deflated mounds, and I wonder if some rock walls could be deflated terraces?

    Like

  16. Kisha: I look forward to hearing more about your dissertation–is it available on the web? Also the work in Prince Rupert Harbour mapping canoe runs. These were certainly visible at Ozette (in my above post). I suspect anywhere you have a camp/village with rocky offshore, you would move these rocks out of the way the best you could for bringing the canoes in. At Hoko River we found what appeared to be canoe runs on an ancient sandy/gravelly beach, since the strata in the wet site was perpendicular to the old beach, therefore we found spaced rows of alder poles (IDed cellularly) sticking out of the bank (on the old beach surface) and occasionally stakes were driven on their outer edges to hold them down and in place.

    We replicated these canoe runs, which are also mentioned in ethnographic accounts, and actually ran a heavy student built spruce (only big log around) dug out canoe up the skids and found it to be very easy for one person to skid the canoe well above the tide line, i.e. they worked great for heavy loads. Take a look at the VILLAGE RECONSTRUCTION and MODEL (a 100:1 model showing skids coming ashore) in CAMP LIFE IMAGES menu section under of our aging Hoko River Image Archive at: http://www.library.spscc.ctc.edu/electronicreserve/anth280/hoko/CAMPLIFE/INDEX/INDEX.HTM , especially Model picture: FOV00687 and Village Reconstruction pictures: AOG00787 and AOG00187.

    Anyway these rock features are no doubt only where they had to be created for canoe runs, otherwise, unless a wet site, doubt much of a feature would remain of these runs. Though I am sure they were always there to help bring in canoe loads of products.

    Thanks and please send references to dissertation and Rupert work if possible, Dale

    Liked by 1 person

  17. Dale, in case Kisha doesn’t check back, her PhD is downloadable here:
    http://circle.ubc.ca/handle/2429/33598
    Makes me realize I need to update my theses page with all the new awesome stuff from the last few years of the student world.

    Like

  18. Quentin: Thanks. Hope you can come to Okeho, Dale

    Like

  19. Interesting post, and what a great picture. In the comments someone wondered what the garden features that Duer was researching might normally be recorded as. Some of the features he first worked on were on Meares Island in the upper intertidal zone which I had recorded a few years before his work – I called them as fish traps, though I was perplexed by their higher elevation in the intertidal zone.

    Off topic a bit, but one of my most startling experiences recording sites was on one of those features – I stepped over a wall, unable to see where my foot was landing. It happened to land on a dead crow, full of gas, which the weight of my foot expelled, causing a loud caw. Needless to say, I jumped a mile high.

    And, to tie other people’s discussions together a bit by placing things into a small bit of geography: I also recorded on Meares Island, with its many estuarine gardens (as Duer later taught us) and dozens of fish traps, a canoe run with split cedar skid planks still in place. Each skid was held down at either end by rock piles, and/or jammed under large rocks. I have no idea how old it is but am guessing it was mid-century, though it could have been maintained from a much longer time than that. It was at the head of Mosquito Harbour where there is a trail across to the channel on the north side of Meares – the trail was used for bird hunting by local First Nations, if I recall correctly my discussions with an elder on a revisit to the area.

    The evidence for a canoe run in the absence of the skids would thus be a parallel series of smallish piles of stones climbing through the intertidal zone. Here is a picture, poorly focused, but good enough for these purposes. Quentin, feel free to embed it in this comment if you want: http://bit.ly/1wQuhRF

    Like

  20. I might have broken that link, but Quentin was on top of things so it survives in his media files. Here is the new link if anyone needs it, slightly sharpened image: http://wp.me/a1R4lY-62r

    Like

  21. This may be a little off topic, but taking “unorthodox stone constructions” literally: a number of long narrow (e.g.15m x 2.3m, 11.2m x 3.0m, 10.5m x 2.0m) presumed burial cairns at Albert Head in Greater Victoria, and one shaped like a big elliptical doughnut, 15m x 9.5m. Located in the midst of a “mortuary landscape” of many more commonly-shaped cairns.

    Unorthodox, maybe, because they’re not found anywhere else on the NW Coast that I’m aware of – with the exception of another doughnut cairn appearing in an 1896 photo at the RBCM (can’t find it online!). These cairn types don’t appear in Darcy Mathews’ MA or PhD theses, because they aren’t found at Rocky Point. His committees rightly advised him to constrain his (already huge) study area.

    Like

  22. Aaron Trowbridge

    I came across a curving stone bridge above the middle Nass River in Gitanyow territory on a historic grease trail (have picture somewhere). The bridge was built over a small seasonal melt water creek and was about 100cm tall and 3.5m long. The trail was still clearly visible on both sides.

    I’ve been very curious about the popular notion of absence of stone use. Thanks for this post.

    Like
